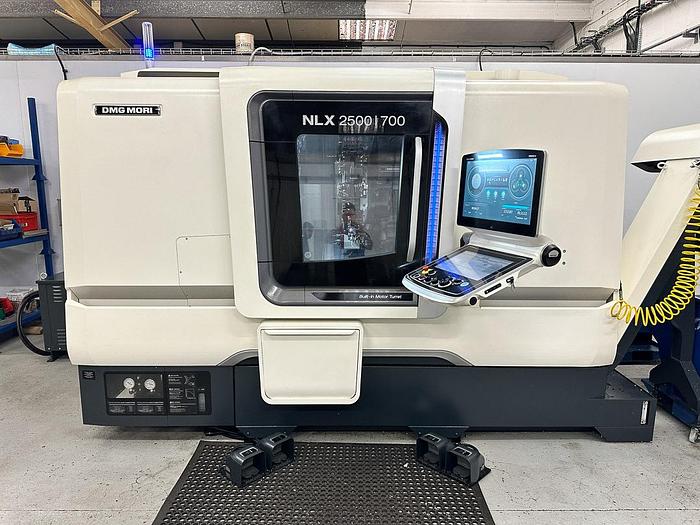

2019 DMG DMG NLX 2500/700 SYM

No longer available

2019 DMG DMG NLX 2500/700 SYM

Location:United Kingdom

Description

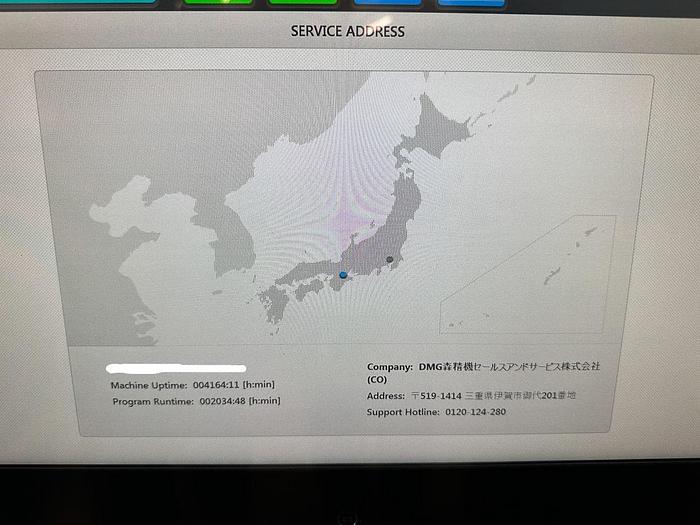

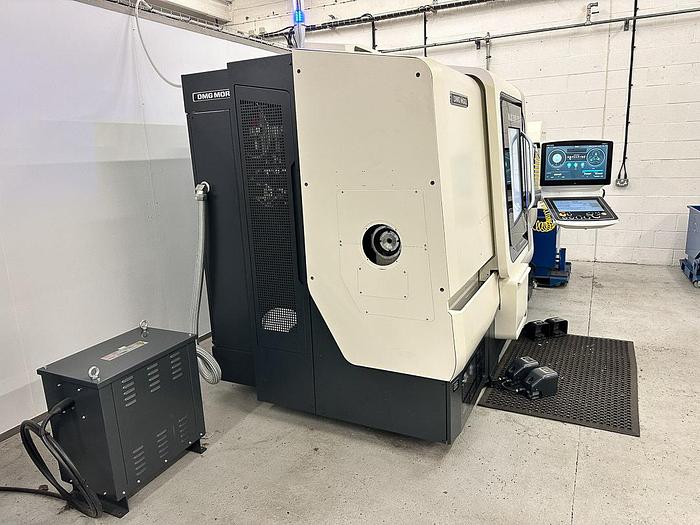

Unique Opportunity to purchase a 2019 DMG NLX 2500 / 700 SYM With Y-Axis, Sub Spindle and Milling. Very Low Hours (2034 Hours) and an extended tooling package included (worth over 25.000 EUR).


The machine is in excellent condition and is being sold due to reinvestment in new machinery.

Viewing by appointment only.

Availability: immediate


Full technical specifications in attached document.


More information available on request.





Show All

Specifications

ManufacturerDMG
ModelDMG NLX 2500/700 SYM
Year2019
ConditionUsed

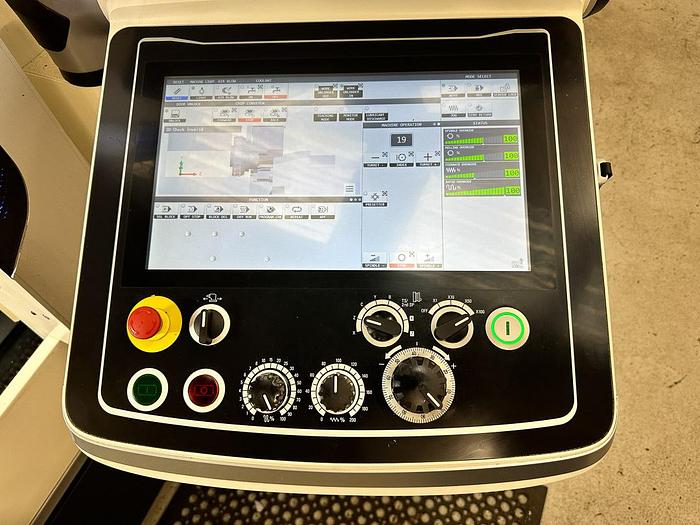

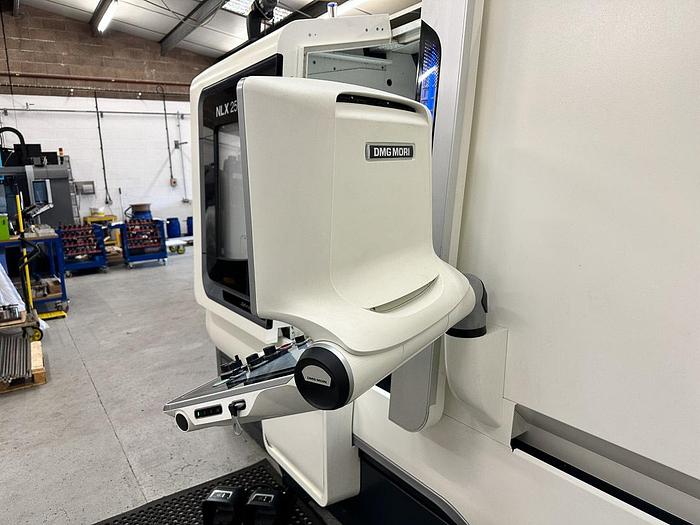

ControlM730UM CELOS With MAPPS V Operating System. CELOS ERGOline Touch operation panel with 21.5-inch multi-touch screen
Max. Turning Diameter mm366
Max. Turning Length mm705
Y-Axis Travel mm‡50
X-Axis Travel mm260
Z-Axis Travel mm795
Spindle 2B-Axis Travel mm734
Swing over Bed mm920
Swing over Cross Slide mm740
Maximum Distance Between Spindle Nose Surfaces mm961
Bar Work Capacity mm80

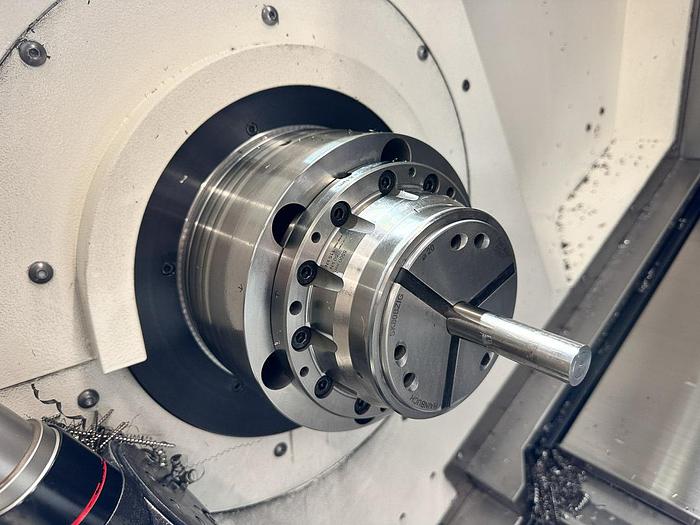

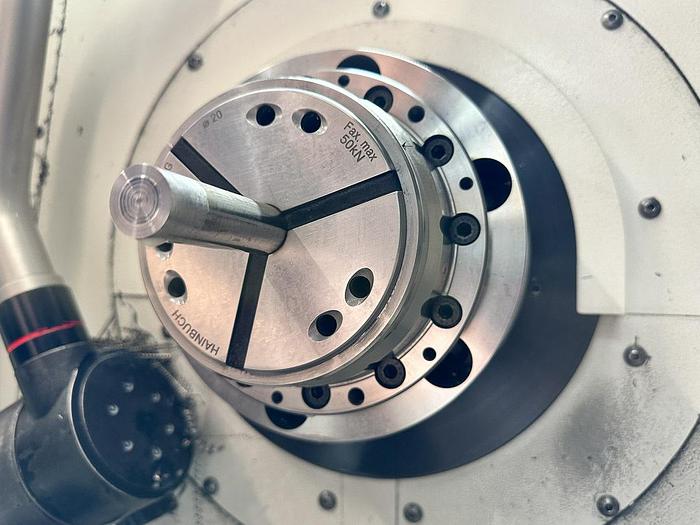

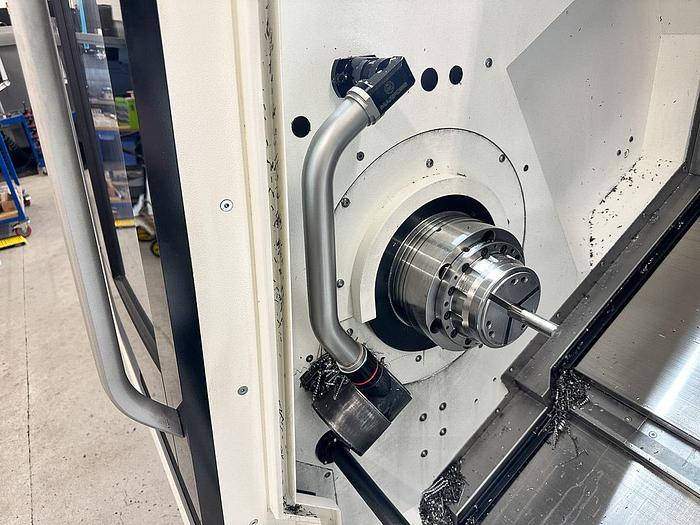

Spindle 1HAINBUCH SPANNTOP mini SK80BZIG Clamping Head Mini Pull Back - Size 80 (A8 Spindle), Hydraulic Controlled Collet Chuck, Clamping Range: 4 - 80 mm, ø Capacity: 82 mm, Outer Diameter Length: 204 mm, Spindle speed: 4000 rpm

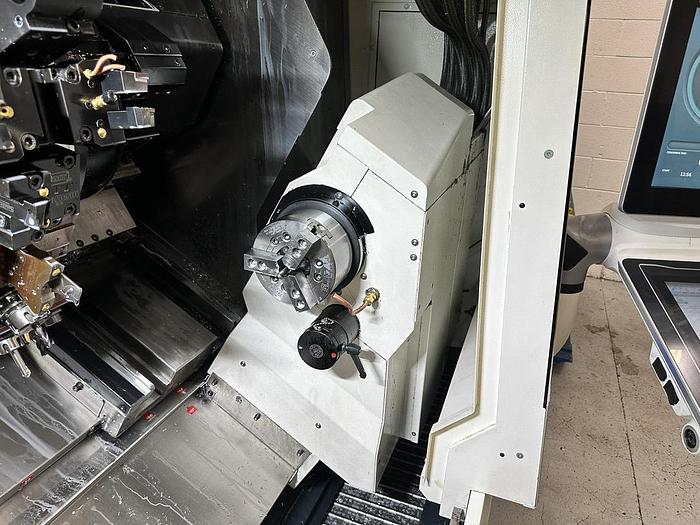

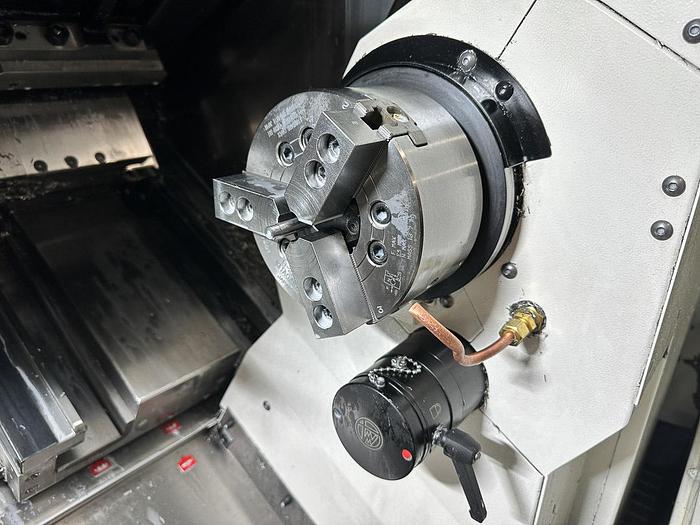

Spindle 2Kitagawa 6 inch Hollow Chuck B206A521F, 3 Jaw Hydraulic Chuck, Through Hole Diameter 45mm, Max. Spindle Speed min-1: 6000

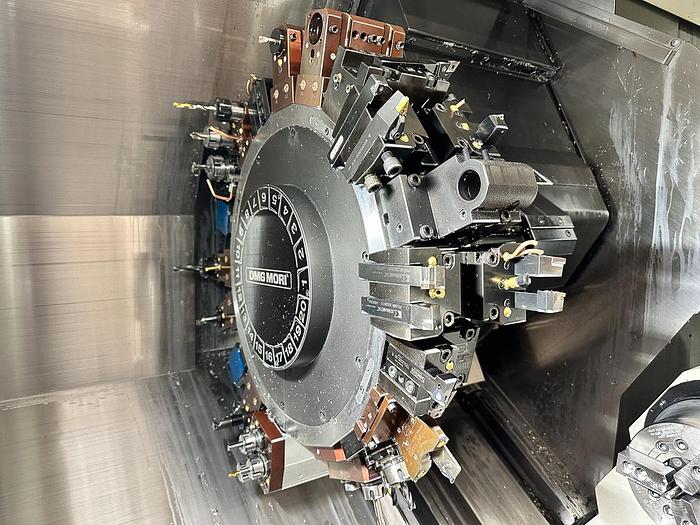

Turret typeBMT (Built-in Motor Turret)
Number of Tools on Turret20
Rotary Tool Spindle10000 rpm
Rotary Tool Spindle for the 20 Station in-house bolt tightened turretyes
Rapid Traverse Rate mm/minX. Z. B: 30000 and Y: 10000
Chip conveyorRight Discharge, Hinge Type

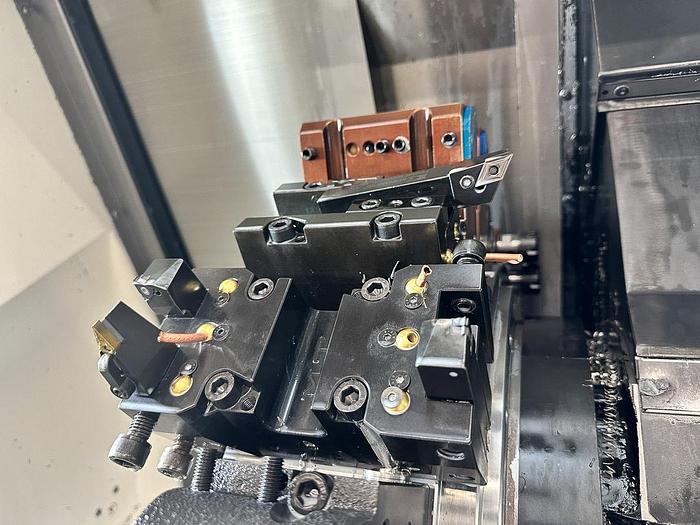

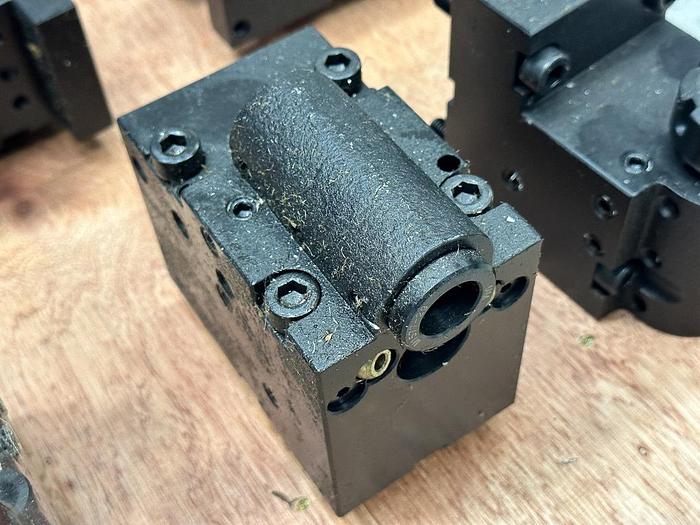

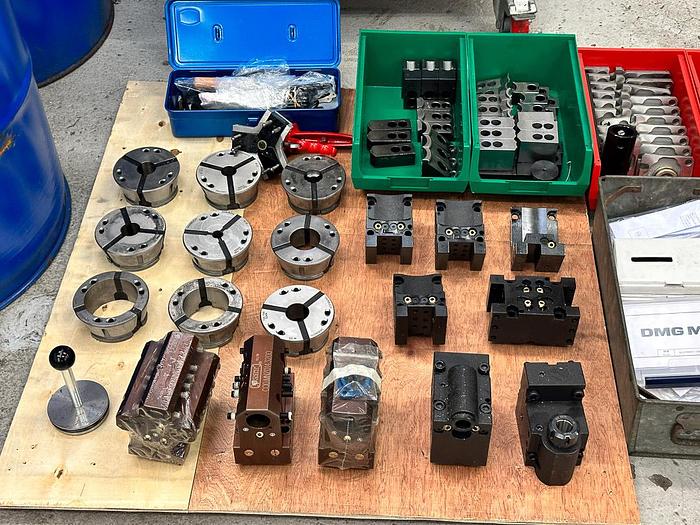

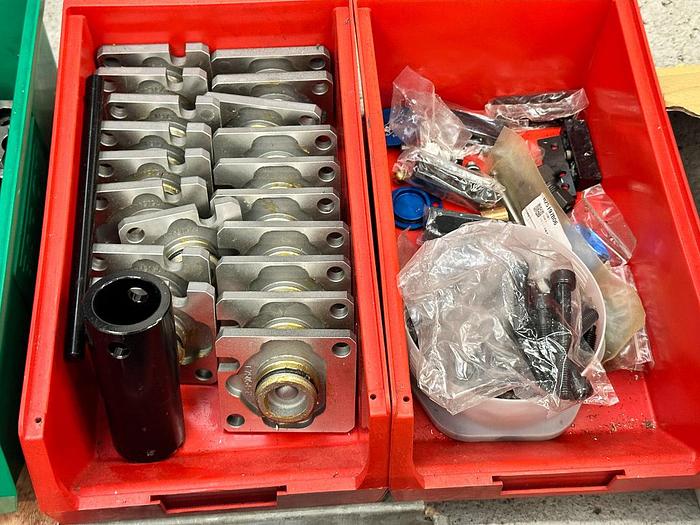

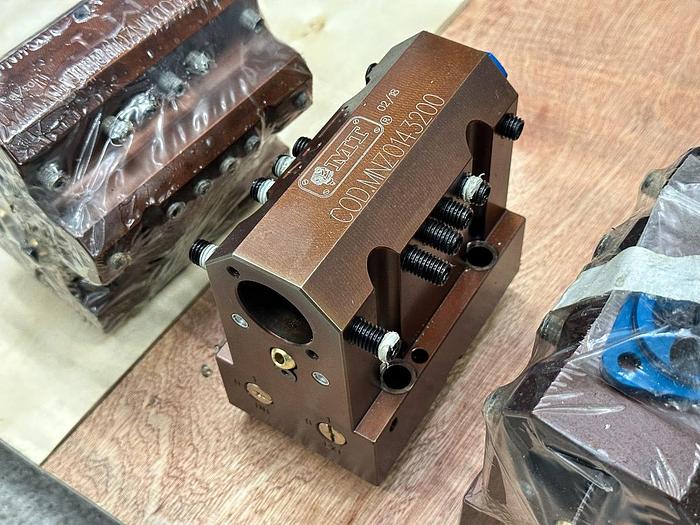

Tooling Package includes Driven and Static Holdersdetailed info on request
Signal Lightyes

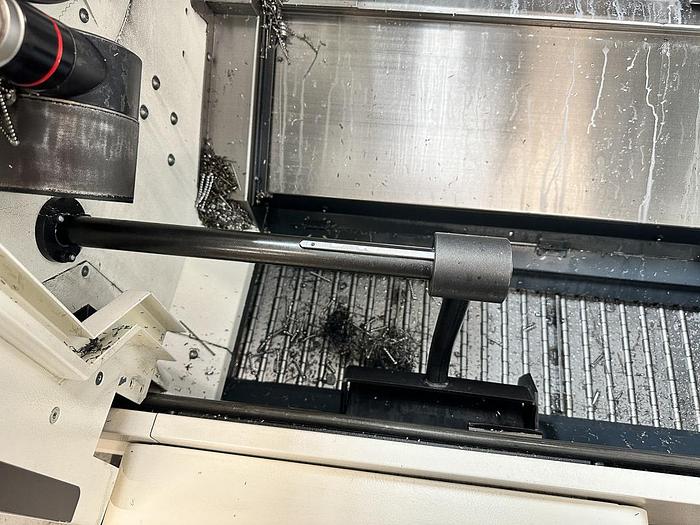

Work Piece Unloaderyes
Bar Feed Interfaceyes
Mist Collector interfaceyes
Swarf Binyes

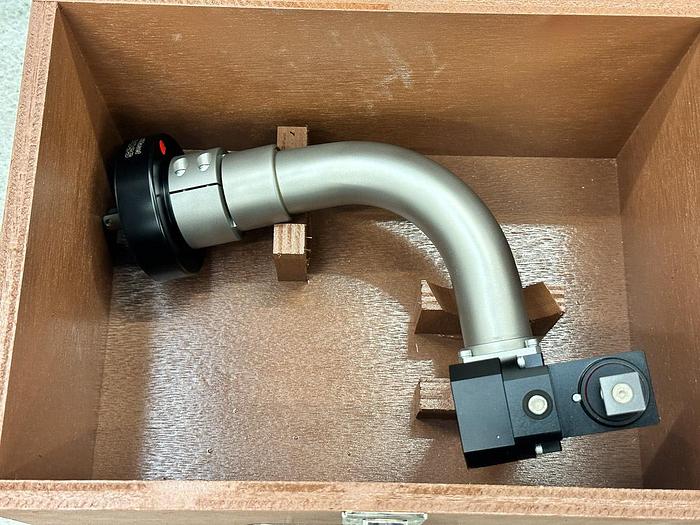

Manual in Machine Tool Presetter (Pivoting Type)yes
